Mango Power E

Mango Power E is a 3533 Wh portable power station with a 3000 W, 120 VAC, 60 Hz inverter. Pair one Mango Power E Battery to expand capacity to 7066 Wh. Two E units plus mSocket Pro or mPanel Pro can output 240 V split-phase at 6000 W. Home backup uses mPanel Pro (sold separately).

Electrical ratings are in Specifications. First-use steps are in Quick Start. Safety, charging, E+ / E-Link, and alarms are in the User Manual. The expansion pack is under Battery.

Features

• Capacity 3533 Wh; CATL LFP cells; capacity retention >70% after 6000 cycles (@25°C, +0.5C/-0.5C)
• Rated AC output 3000 W; recharge to 80% in 1 hour, 100% in 1.5 hours
• AC charging up to 3000 W; solar charging up to 2000 W (60 V - 150 V)

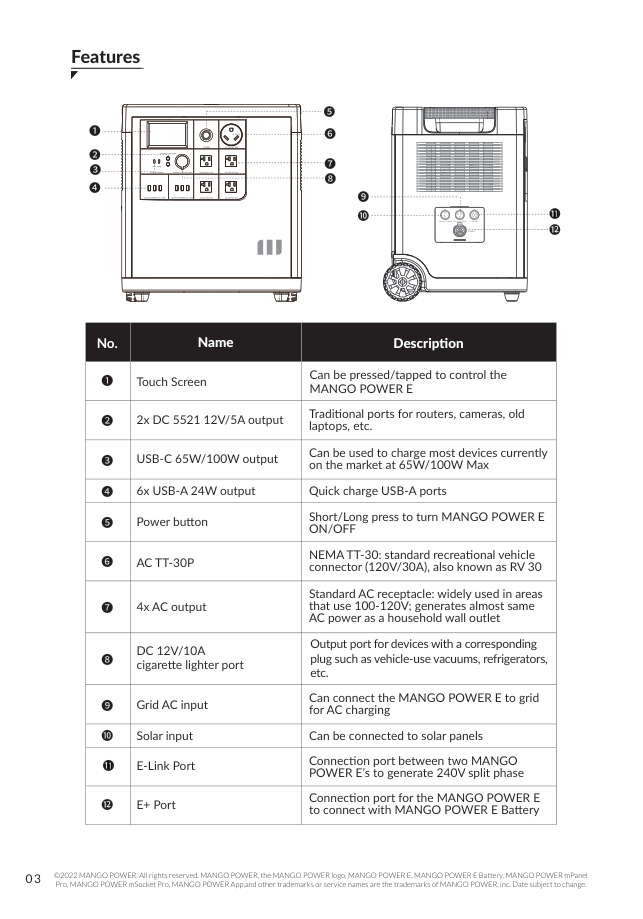

• 16 output ports, including 4× 20 A AC, USB-A, USB-C, car outlet, DC 5521, and TT-30 RV
• Bluetooth and Wi-Fi; OTA upgrade; 4.3-inch touch screen
• Enclosure rating IP21; running noise <40 dB no-load, <51 dB full-load
• 5-year warranty

Videos

• How to use 240 V split-phase power
• How to expand Mango Power E
• How to charge your devices
• How to charge Mango Power E

Download

User manual (PDF)

Quick start guide (PDF)
