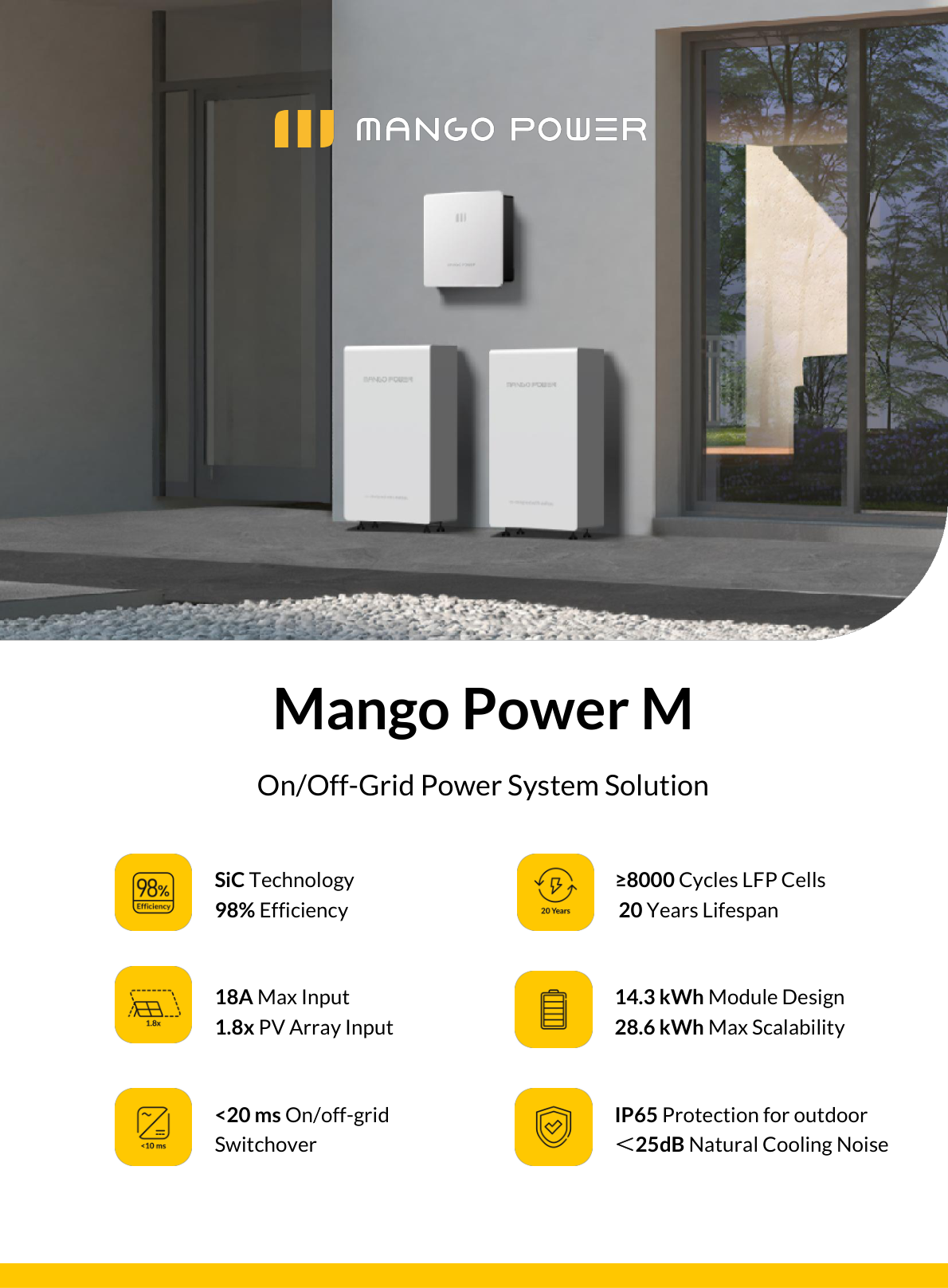

Mango Power M AU
Mango Power M AU is a single-phase hybrid inverter for the Australian market. Two models: M Hybrid Inverter 5kW and M Hybrid Inverter 6kW. It combines PV grid-tied conversion with battery energy storage.
Electrical and mechanical ratings are listed under Specifications. Safety, installation, operation, LED status, and alarms are in the User Manual. The M LFP Battery 280Ah module is under Battery.
Features
Section titled “Features”- SiC technology
- Maximum efficiency 98%
- 18 A maximum PV input; 1.8× PV array input
- On/off-grid switchover <20 ms
- Enclosure rating IP65 for outdoor use
- Natural cooling, noise <25 dB
- Pairs with 14.3 kWh LFP battery modules; up to 28.6 kWh
- LFP cells ≥8000 cycles; 20-year lifespan (battery module)
System diagram
Section titled “System diagram”
Ports: DC, AC, COMM, PV, WLAN, CAN. The hybrid inverter serves backup load and grid load.
Warranty
Section titled “Warranty”10 years. Limited warranty. Terms are in Warranty.
