Battery User Manual
Mango Power E Battery cannot be used alone for AC output. It is adapted to Mango Power E.

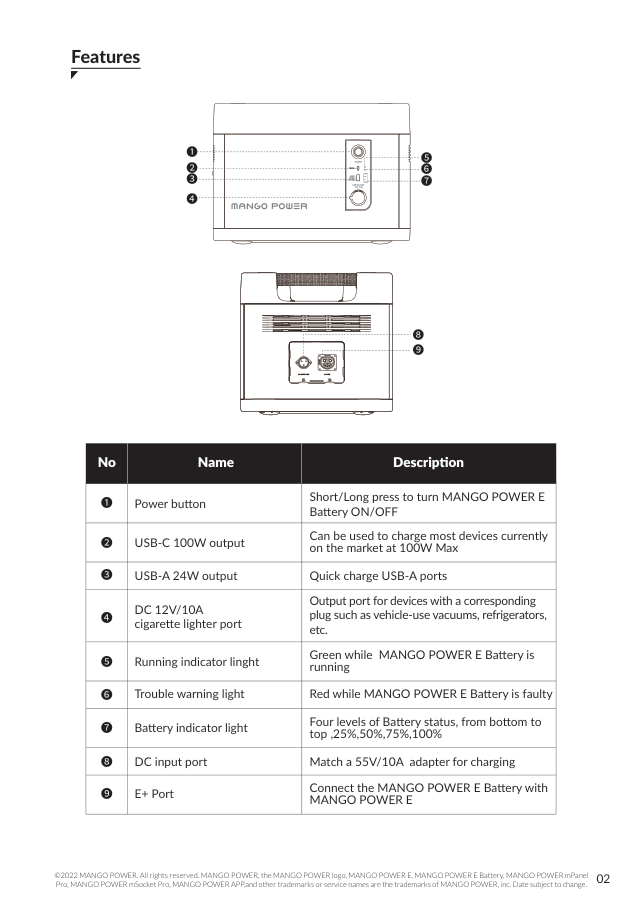

| No. | Name | Description |
|---|---|---|
| 1 | Power button | Short / long press to turn on / off |
| 2 | USB-C 100 W output | 100 W max |
| 3 | USB-A 24 W output | Quick-charge USB-A |
| 4 | DC 12 V / 10 A cigarette lighter | Vehicle vacuums, refrigerators |
| 5 | Running indicator light | Green while running |
| 6 | Trouble warning light | Red while faulty |
| 7 | Battery indicator light | Four levels: 25%, 50%, 75%, 100% from bottom to top |
| 8 | DC input port | Match a 55 V / 10 A adapter for charging |
| 9 | E+ port | Connect to Mango Power E |
Getting started
Section titled “Getting started”Startup: short-press the power button for 1 second. The power-button indicator illuminates and the running indicator turns green. If linked to Mango Power E, the battery icon shows on the E touch screen.
Shutdown: long-press the power button for 5 seconds.
E+ function
Section titled “E+ function”Expands capacity to 7066 Wh.
- Turn off both units before connecting or disconnecting.
- Connect with the E+ cable.
- Turn both on. Confirm the extra-battery icon on the E touch screen.
E-Link function
Section titled “E-Link function”Two E units plus mSocket Pro double output power and voltage.
- Disconnect the AC charging cable on both E units before plugging into mSocket Pro.
- Connect each E Battery to its E unit with an E+ cable.
- Connect the two E units with an E-Link cable.
- Plug both into mSocket Pro.
- Turn the batteries and E units on, then tap AC on one E touch screen.
Box contents
Section titled “Box contents”Mango Power E Battery × 1, E+ connection cable × 1, quick start guide × 1, warranty card × 1, QC PASS certificate × 1.
Storage and safety
Section titled “Storage and safety”Store at 20°C - 30°C (68°F - 86°F). Do not store above 45°C (113°F) or below -10°C (14°F). For long-term storage, cycle every three months (discharge to 0%, fully recharge, then discharge to 60%). Not charging or discharging for more than 6 months voids the warranty.
The pack is 73.1 lbs (33.18 kg). Use an auxiliary transport tool if needed. Power button off before wiring. Do not dismantle. Do not install near heaters or in rain. Do not use chemical cleaners or spray products. Operating range: charging -10°C - 45°C (14°F - 113°F); discharging -20°C - 45°C (-4°F - 113°F). Use only official accessories.
